MODULAR DIRECT VIEW OR ACCENT ARCHITECTURAL LIGHTING SYSTEM

Highlighter® product family is designed to highlight the exceptional character of large-scale architectural structures and spaces such as skyscrapers, bridges, airports, or shopping malls. This highperformance modular system gives the designers the freedom to achieve their vison by removing technical limitations thanks to the incorporated GVA’s proprietary avant-garde engineering technologies

INFINITY® enables extremely long lighting circuits (up to 684m or 2,000ft) from a single power-data sourceCOLOR-AMP®, GVA’s award winning technology maximises light output of color changing and dynamic white fixtures. COLOR-STREAM®, the latest innovation, allows exceptionally fast communication and high resolution with liquid smooth dimming and transitions.

KEY FEATURES

  • 300mm (1 ft) or 150mm (0.5 ft) long light modules allow LED strings of different lengths for straight or curved installations
  • Down to 75mm (2.95”) pixel resolution
  • Very high communication speed of 6.25 Mbps
  • Up to 200 frames per second refresh rate
  • Up to 12-bit dimming resolution @ 40kHz equivalent dimming frequency
  • Multiple luminaire’s power calibrations (in the field)
  • Power and Data through-wiring for end-to-end connection via sealed push lock connectors Up to 100 meters (328 ft) long leader or jumper cables
  • LED pitch is maintained between luminaires to eliminate dark spots
  • Up to 100 meters (328 ft) long leader or jumper cable

SPECIFICATIONS​

CONTROL: Diverse range of communication protocols via GVA’s Power-Data Converter PDC5™: Art-Net 4, sACN, DMX-512A, DALI / DALI 2v
PROJECTED LIFETIME: L70 >150,000hrs @25°C (77°F)
OPERATING TEMPERATURE: 40°C to +50°C (-40°F to 122°F)
ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
IEC CLASS: Class 1 LED Luminaire

LIGHT MODULE OPTIONS

HIGHLIGHTER® GEN4 300

HIGHLIGHTER® GEN4 150

HL4™-300 is the fourth generation of the Highlighter® product family, designed for long sections of delineation or cove lighting. Monochromatic, Dynamic White and Color Changing configurations are available in increments of 300 mm (1 ft) with a controllable resolution of 75/150/300mm.

HL4™-150 is the fourth generation of the Highlighter® product family, designed for long sections of delineation or cove lighting. Monochromatic, Dynamic White and Color Changing configurations are available in increments of 300 mm (1 ft) or 150 mm (0.5 ft) with a controllable resolution of 75/150mm.

LENGTH: 300mm (1ft), 600mm (2ft), 900mm (3ft), 1200 mm (4 ft)
BODY AND PCB COLOR: Black or White (any combination)
RESOLUTION: 75/150/300mm (2.95″, 5.90″, 12″)
INPUT VOLTAGE: INFINITY® 380V DC or ELV 48V DC

LENGTH: 150mm (0.5ft), 750mm (2.5ft), 1050mm (3.5ft)
BODY AND PCB COLOR: Black or White (any combination)
RESOLUTION: 75/150/300mm (2.95″/5.90″/ 12″)
INPUT VOLTAGE: INFINITY® 380V DC or ELV 48V DC

HIGHLIGHTER® MONOCHROMATIC CONFIGURATIONS

HL4-DL

HL4-NICHE

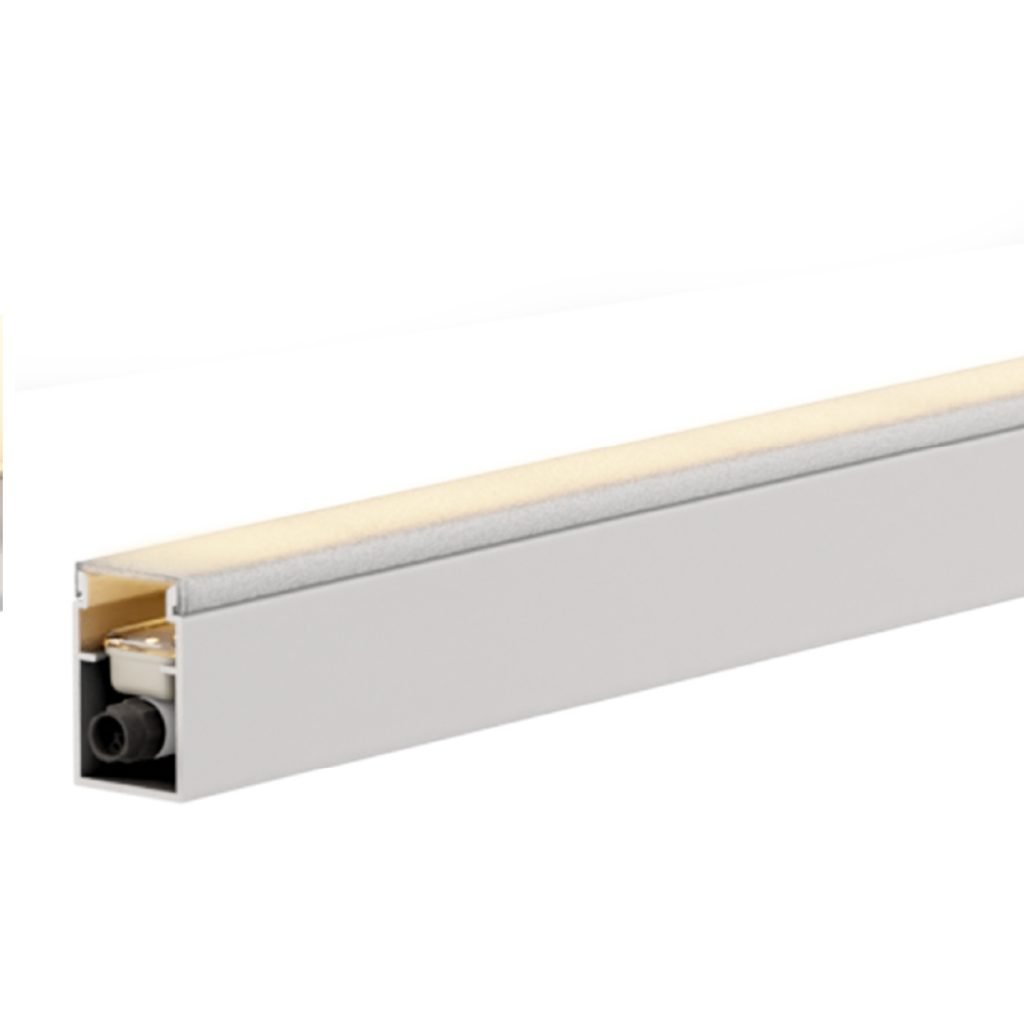

HL4-COVE OD

HL4-COVE

Direct view monochromatic luminaire with round or flat double diffuser. Controllable resolution 75/150/300mm.

SIZE: ROUND 50 x 87 mm (2.0 x 3.4 in), FLAT 48 x 60 mm (1.9 x 2.4 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

Direct view monochromatic luminaire with single layer diffuser. Controllable resolution 75/150/300mm.

SIZE: 38 x 60 mm (1.50 x 2.4 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

Outdoor indirect monochromatic lighting with a controllable resolution of 75/150/300mm.

SIZE: 38 x 42 mm (1.5 x 1.65 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

Indoor indirect monochromatic lighting with a controllable resolution of 75/150/300mm.



SIZE: 35 x 34 mm (1.38 x 1.34in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

HIGHLIGHTER® COLOR CHANGING CONFIGURATIONS

HL4-DL

HL4-NICHE

HL4-COVE OD

HL4-COVE

RGBW or RGBA direct view with round or flat double diffuser with a controllable resolution of 150/300mm.

SIZE: ROUND 50 x 87 mm (2.0 x 3.4 in), FLAT 48 x 60 mm (1.9 x 2.4 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

RGBW or RGBA or direct view single layer diffuser with a controllable resolution of 150/300mm.

SIZE: 38 x 60 mm (1.50 x 2.4 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)



RGBW or RGBA outdoor indirect lighting with a controllable resolution of 150/300mm.

SIZE: 38 x 42 mm (1.5 x 1.65 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

RGBW or RGBA indoor indirect lighting with a controllable resolution of 150/300mm.

SIZE: 35 x 34 mm (1.38 x 1.34in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

HIGHLIGHTER® dynamic white CONFIGURATIONS

HL4-DL

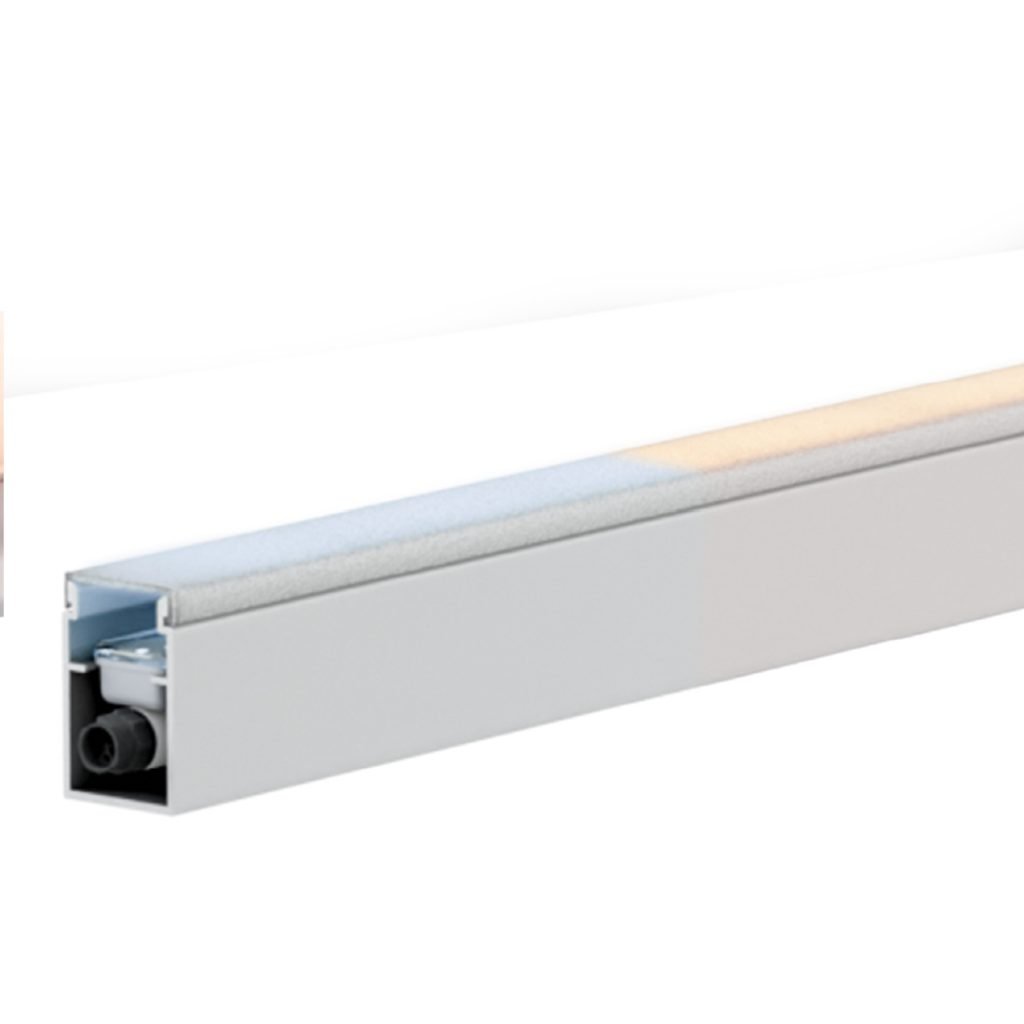

HL4-NICHE

HL4-COVE OD

HL4-COVE

Direct view with round or flat double diffuser with a controllable resolution of 150/300mm. CCT range from 2700K to 6500K.

SIZE: ROUND 50 x 87 mm (2.0 x 3.4 in), FLAT 48 x 60 mm (1.9 x 2.4 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

Direct view single layer diffuser with a controllable resolution of 150/300mm. CCT range from 2700K to 6500K.

SIZE: 38 x 60 mm (1.50 x 2.4 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)

Outdoor indirect lighting with a controllable resolution of 150/300mm. CCT range from 2700K to 6500K.

SIZE: 38 x 42 mm (1.5 x 1.65 in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)



Indoor indirect lighting with a controllable resolution of 150/300mm. CCT range from 2700K to 6500K.

SIZE: 35 x 34 mm (1.38 x 1.34in)
LENGTH: 300, 600, 750, 900,1050, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 2.5, 3, 3.5, 4, 5, 6, 7, or 8 ft)



HIGHLIGHTER® DELINEATION CONFIGURATIONS

HL4™ MONO

HL4™ COLOR CHANGING

HL4™ DYNAMIC WHITE

SIZE: 50 mm x 87 mm (2.0 in x 3.4 in)
LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft)
SURFACE BRIGHTNESS: MONO: 3,670 cd/m²
RGBW: 4,150 cd/m²

SIZE: 48 mm x 60 mm (1.9 in x 2.4 in) LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft) SURFACE BRIGHTNESS: MONO: 5,973 cd/m² RGBW: 6,453 cd/m²

SIZE: 38 mm x 60 mm (1.5 in x 2.4 in)
LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft)
SURFACE BRIGHTNESS: MONO: 5,973 cd/m²
RGBW: 11,970 cd/m²

HIGHLIGHTER® DL Round Diffuser

HIGHLIGHTER® DL Flat Diffuser

HIGHLIGHTER® DL NICHE Cover Lens

SIZE: 50 mm x 87 mm (2.0 in x 3.4 in)
LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft)
SURFACE BRIGHTNESS: MONO: 3,670 cd/m²
RGBW: 4,150 cd/m²

SIZE: 48 mm x 60 mm (1.9 in x 2.4 in) LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft) SURFACE BRIGHTNESS: MONO: 5,973 cd/m² RGBW: 6,453 cd/m²

SIZE: 38 mm x 60 mm (1.5 in x 2.4 in)
LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft)
SURFACE BRIGHTNESS: MONO: 5,973 cd/m²
RGBW: 11,970 cd/m²

HIGHLIGHTER® COVE CONFIGURATIONS

HIGHLIGHTER® COVE Adjustable Bracket

HIGHLIGHTER® COVE Adjustable Tray

HIGHLIGHTER® COVE Fixed Mounting

HIGHLIGHTER® COVE Outdoor

SIZE: 35 x 33 mm (1.4 x 1.4 in)

SIZE: 127 x 47 mm (5.0 x 1.9 in) LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft)

SIZE: 34 x 35 mm (1.3 x 1.4 in)
LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft)

SIZE: 38 x 35 mm (1.5 x 1.4 in) LENGTH: 300, 600, 900, 1200, 1500, 1800, 2100, or 2400 mm (1, 2, 3, 4, 5, 6,7, or 8 ft)

LED COLORS

RGBW30K
RGB
Dynamic White
2200K
2700K
3000K
3500K
4000K
5000K
6500K
Red
Green
Blue
Amber
